Everything You Need to Know Before You Buy Your First UTV Lift Kit

By Kavan Wright | Behind The Wheel on May 31, 2018
9M READ
Share
5

Congratulations—you bought your first UTV! You’ve been riding around all over the dang place and having a stinking blast. You no longer have to sit shotgun with that one friend that convinced you to take the plunge in the first place. Now you look forward to the weekends when you don’t have any plans because that means it’s a riding weekend.

There’s one problem: Just about everybody you talk to has a lift kit… and now you want one, too. But where to start? Your buddy has a small lift kit that he paid a few hundred bucks for. Maybe that’s for you. Betty went big with her lift and now she brings a step ladder with her to get into the driver’s seat. Is that too big? Jimmy went the cheap route and built his own lift out of bits of other people’s leftover scraps. You know you don’t want that.

You’ve come to the right place, you first-time lifter. We’ll break it down so you can figure out how much effort it takes to install a UTV lift kit, how much money you can expect to spend, and the benefits of each.

Front shot of Can-Am Maverick with SuperATV Lift Kit
A lift kit can change the look, feel, and capability of your machine. But there are so many different kinds. Which one is right for you?
Photo by SuperATV

What Can a Lift Kit Do for You?

I’m guessing that you have three reasons for getting a lift kit.

  1. You want more clearance.
  2. You want bigger tires.
  3. They make your machine (and you by extension) look good.

One or more of these apply to you right now, so let’s see how each type of UTV lift accomplishes those three goals—and for what price.

What Kind of Lift Is Right for Me?

There are really just three types of lifts you’ll come across: spring spacer lifts, bracket lifts, and portal gear lifts. Spring spacer lifts and bracket lifts involve making your shocks and suspension reach further, while portal lifts put the lift right out in the hub, instead of at the shock.

Price is certainly a huge factor when deciding what kind of lift is right for you, but there are other considerations as well. Do you have experience in the garage? Which are the easiest to install? Which lift kit will give your machine the most clearance? If you’re willing to do the research to find the right product, your lift will take your riding to the next level. This article will help you get started.

Spring Spacer Lift

Spring spacer lifts are your most basic lift. I’m tempted to call them “entry level” but that doesn’t really go far enough. This is the smallest, cheapest, and easiest lift kit you can buy for your machine. The kit itself typically includes four aluminum spacers that fit on top of your shock spring. This compresses your shock spring farther than it would naturally and causes your shock to push down on your suspension harder. The result is a small amount of lift—typically one or two inches. On certain shocks, this effect can be achieved to some degree without the shock spacer by utilizing the built-in threaded collar.

This side-by-side lift is perfect for people who are on a tight budget or who only want a small amount of lift to help clear small rocks, ruts, and obstacles. Keep in mind that the smaller the lift, the less stress it puts on your suspension.

Installing a spring spacer lift is easy and shouldn’t take longer than an hour or two. You will need tools to get your shocks off your machine, and you’ll want a dedicated spring compressor tool to get the spacer on safely. It’s all super basic stuff that won’t put a dent in your wallet.

The benefits of a spring spacer lift are obvious: they’re cheap and easy to install. They’re limited in the amount of lift they can deliver (typically one or two inches only), but they’re a decent bang for your buck.

Spring Spacer Lift Breakdown

1) Clearance: When it comes to our three goals for a lift kit, a spring spacer lift might come up a little short. You get a modest amount of clearance (the aforementioned one or two inches), and you’ll clear some obstacles that tangled you up before, but it won’t be a major game changer.

2) Tire Size: It’s hard to quantify how much a lift will increase your max tire size exactly because every make, model, and year is different. You’ll probably be able to sneak in another inch or so of tire diameter. A small increase, but it can make big differences in certain circumstances.

3) Style: Finally, and most importantly, the coolishness factor. This is a pretty straightforward scale: bigger = better. This one is right at the bottom of the scale—it’s better than nothing and it looks cool, but we’re just getting started here.

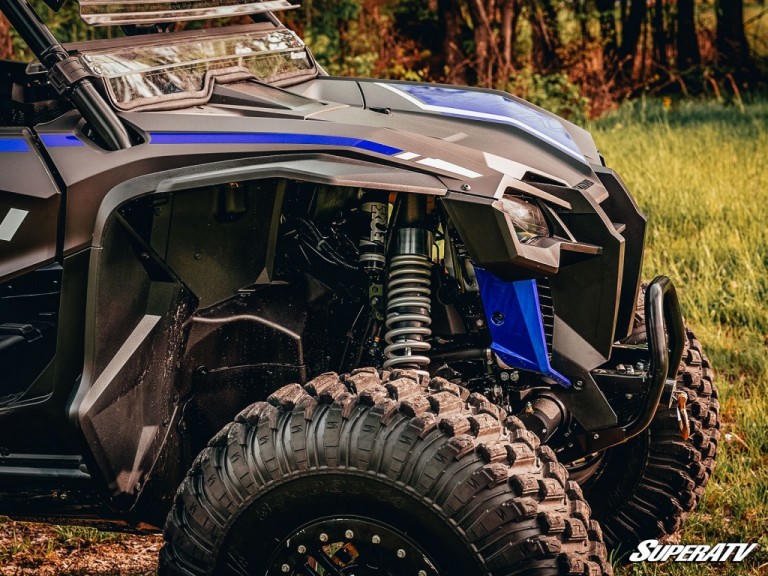

Front side shot of Honda Talon
You can see the spring spacers at the top of this Talon’s shock. They’re simple, easy, and reliable. They only give you a small lift, though, and stiffen your suspension somewhat.
Photo by SuperATV

Small Bracket Lift

Bracket lifts are the most common type of side-by-side lift in the industry. They can be big (5-10″) or small (2-4″) in size. You’ll find a greater variety of bracket lifts than any other style. That means that more companies are fighting to make the best, most affordable bracket lifts possible.

Bracket lifts work by moving the mounting points of your shocks, which essentially make your shocks longer. That pushes your A-arms and/or trailing arms down further, giving you lift. These lifts are built with welded steel plates that fit around your factory shock mounting points in order to move them. This is usually done at the upper mounting point but can also be done at the lower mounting point on the A-arm itself.

Small bracket lifts (2-4″) usually include these brackets for the front and rear suspension, and nothing else. They utilize metal brackets (usually steel) to change the upper mounting location. This brings your shock into a more vertical orientation, which causes it to push down on your suspension. These types of lifts tend to give you a slightly greater lift than a shock spacer would (without breaking the bank), and most don’t require you to replace any suspension parts.

Small bracket lifts are simple to install and shouldn’t take longer than two hours. Some bracket lifts will include one bracket for one end and one pair of spring spacers for the opposite end.

Small Bracket Lift Breakdown

1) Clearance: Up to four inches of clearance is a game changer. You’ll notice a major difference in the types of terrain your machine can handle and the types of obstacles you can roll right over. Smaller rocks and bushes ain’t got nothing on your extra four inches of lift. (The big ones will still give you grief, though.)

2) Tire Size: Now we’re talking. You should be able to upgrade your tire size by two or three inches with a 4″ lift. You’ll see major changes in your ride height and your terrain-tackling ability with larger tires. Not to mention they look good.

3) Style: Speaking of looking good, a small bracket lift is starting to break into that “lift look” that caught your attention in the first place. But let’s see how far we can push it.

4) Price: $200-$500

SuperATV Rhino 2.0 Axle installed on Polaris RZR
This lift has limit straps on the shock. Limit straps keep you from overextending and destroying your shock.
Photo by SuperATV

Big Bracket Lift

Big bracket lifts (5-10″) are for the enthusiast rider. They’re more expensive and require a lot more installation time than smaller lifts, but the payoff is huge! This type of lift requires new trailing arms, radius arms, A-arms, axles, tie rods, and brake lines. Occasionally they’ll come with new shock springs or new, longer shocks altogether, which forego the need for brackets. Any good big lift kit will come with everything you need in the box (or several boxes), including a steering stop kit to keep you from binding your axles.

Installation for big lift kits takes time—it’s a total suspension overhaul. If you’ve never done work like this on your machine before, you should plan for a full weekend. If you can coax an experienced friend or neighbor to help you out, you can finish it in half a day. The holdups come from installing new brake lines (bleeding brakes can be aggravating the first few times you do it) and the sheer volume of parts you’re replacing. Just offer to buy your buddy lunch and get him in the garage with you.

Big Bracket Lift Breakdown

1) Clearance: Ten inches of lift—are you kidding me? You’re on your way to clearing fifty-gallon barrels with a lift like that.

2) Tire Size: With a 10″ lift you’re only limited by your machine. We’re talking 36″+ on most machines. With tires that big and heavy, you’ll want to think about installing a gear reduction kit to keep from destroying your drive train and burning up belts.

3) Style: This is it. As big as it gets without some serious custom fab. You’ll get complements everywhere you go—just make sure you bring that step ladder with you.

4) Price: $1,000-$3,000

Rear shot of Can-Am Defender with SuperATV 6" Lift Kit
A big lift gives you big clearance. They change the identity of any machine they’re installed on. A Ranger with a big lift becomes a monster custom build.
Photo by SuperATV

Portal Gear Lift

Portal gear lifts are a whole other beast with some serious benefits over traditional lifts. You can get this kit as a 4″, 6″, or 8″ lift. The lift itself comes in the form of a box hub that replaces your OEM hub. Portal gear lifts are great for just about any application and terrain. This lift will take your machine through tougher obstacles easier than any other lift.

Each hub has an input where the outer end of your axle goes in, and an output shaft four or six inches lower where your wheel attaches. The lower output shaft is driven by gears inside the box that also give you gear reduction, which increases your torque.

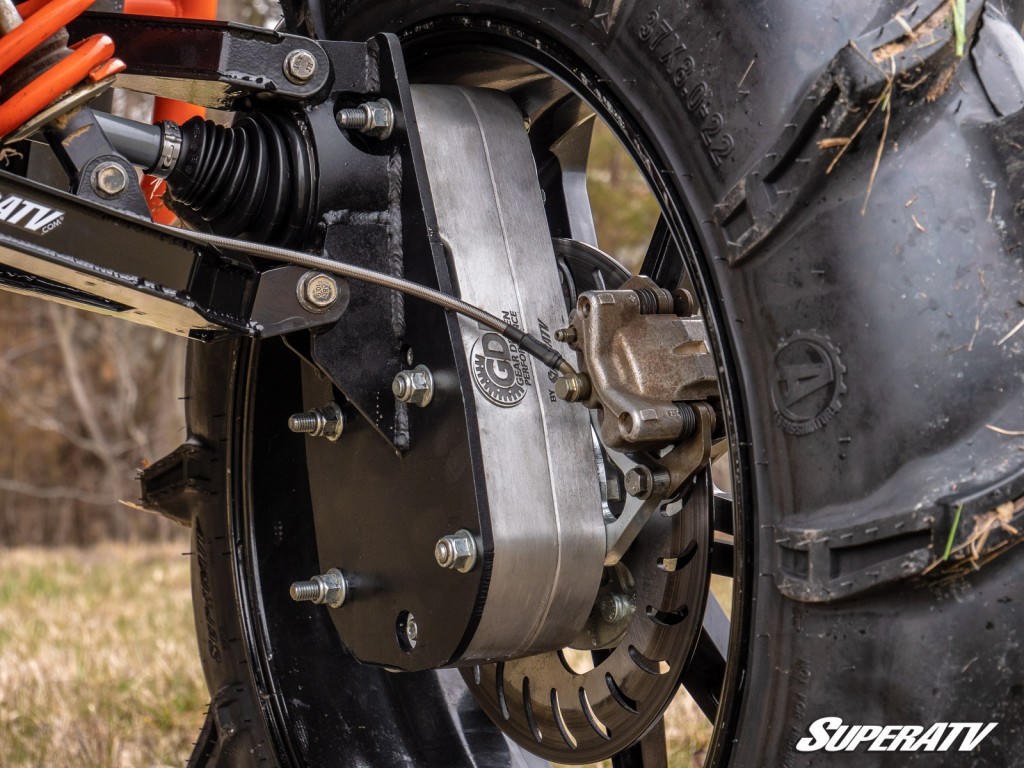

GDP Portal Gear Lift installed on Can-Am Maverick X3
This 8″ GDP Portal Gear Lift gives you a huge lift and a killer gear reduction so you can run big tractor tires. The best part? It doesn’t change your axle geometry and it reduces strain on your drivetrain.
Photo by SuperATV

What does all that mean for you? Keep your stock A-arms, trailing arms, axles, and tie rods. Your suspension geometry is unchanged, so you don’t put any extra stress on your drivetrain (even with bigger tires). Portal gear lifts change everything. Even those impossible-looking trails are child’s play when you have a portal gear lift. Other lifts don’t have that major performance boost. The price tag might be a little higher than your average bracket lift, but the benefits are worth the investment.

A portal gear lift includes four hubs, brackets and steering arms for each of those arms, and brake lines. The installation is not terribly complicated (apart from bleeding the brake lines) but it takes time to mount everything in place. This is another buddy job—less than one day with a buddy, two or more days by yourself.

Check out our GDP Portal Gear Lifts to learn more about what SuperATV’s portals can do for you.

Portal Gear Lift Breakdown

1) Clearance: Not as big as the biggest bracket lifts, but eight inches is nothing to scoff at. You’ll find your way over tough obstacles like they were flat ground with six extra inches of clearance combined with that 45% gear reduction. SuperATV Portal Gear Lifts make your machine eight inches wider, granting more stability.

2) Tire Size: With 2-6″ larger tires, you will increase your clearance further and notice a huge difference in your capabilities. The best part is that you have no need for a gear reduction kit—it’s built right in!

3) Style: That huge clearance, those monster tires, and killer ride performance to boot? It’s the full package, and it’s sure to turn eyes from coast to coast.

4) Price: $2,900-$5,000

The Mega Lift

There’s one more thing you can do to take your lift game over the top. It’s unbeatable and unstoppable. It’s the coup de grace of lift kits and it’s reserved only for the most experienced and ambitious lift fanatics.

I’m talking about putting a big 10″ lift on top of a 8″ portal gear lift. It’s possible (portals don’t screw with your suspension, remember?), it’s been done, and we do it all the time here at SuperATV.

10″ Lift Kit + 8″ Portal Kit Breakdown

1) Clearance: !!

2) Tire Size: Tractor++

3) Style: ∞

4) Price: Who cares???

Now that you’ve got the knowledge to find the perfect UTV lift kit for you, it’s time to go out and get one. Whether you go with a spacer lift or a portal gear lift, you won’t have any regrets. Spending money on your machine is all about having more fun. So have fun in the best possible way by riding a little higher than you used to.
