Gen 2 Portals Are Gonna Change the Way You Wheel

By Kavan Wright | News on October 24, 2017
4M READ
Share
0

Update: Gen 3 GDP Portal Gear Lifts are out now! They take Gen 2’s improvements and make them even better with billet aluminum housings, different gear reduction options, and more. Check out Gen 3 GDP Portal Gear Lifts.


That’s right. We’ve taken everything we’ve learned about portal gear lifts since we first released them in 2015 and made new, better, stronger portals. They were already great, but now they’re even greater. Here’s what’s new in our Gen 2 portals.

Portal Drive Shafts

Let’s start with the most significant change: the drive shafts. We’ve seriously beefed these things up. The thread pitch has been increased from M20 to M30, so you also get beefier castle nuts and a socket to fit them. The cotter pin has been increased from 3 mm to 4-3/4 mm. Overall, the diameter of the shaft has been increased by a whopping 30%.

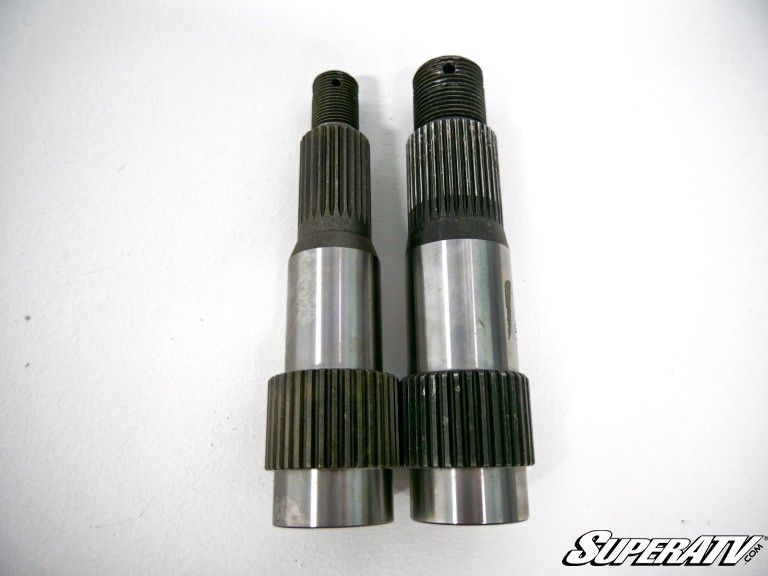

SuperATV portal shaft
You can see the old Gen 1 shaft on the left and the new Gen 2 shaft on the right. The strength difference is astonishing. There’s no breaking these shafts—trust us, we’ve tried.
Photo by SuperATV

These things are tough. They’re so tough that they even stall our breaker machine. That’s the same breaker that was able to break our Gen 1 shafts and every axle we’ve ever put in it. We are 100% certain that they are built for battle.

Wheel Hubs

SuperATV portal rotor
Check out the Gen 1 hubs on the left and the Gen 2 hubs on the right. The Gen 2 hubs are thicker and stronger, but do you see the taller section in the middle? That’s the key to less wear and more reliable performance.
Photo by SuperATV

With larger drive shafts come new wheel hubs. The hub plate itself is 4 mm thicker, and the design has changed to eliminate the need for a separate tapered washer (the taper is built right in as you can see in the picture above). The taper keeps your portal drive shafts locked in place so you don’t develop a wobble or rattle, and it keeps wear and tear on all of your portal gear lift parts to a minimum.

Portal Lid

The portal lid has been improved as well. Previously, we made these lids with some honeycomb features that reduced weight. Now we’re making them as a solid piece of aluminum for increased strength.

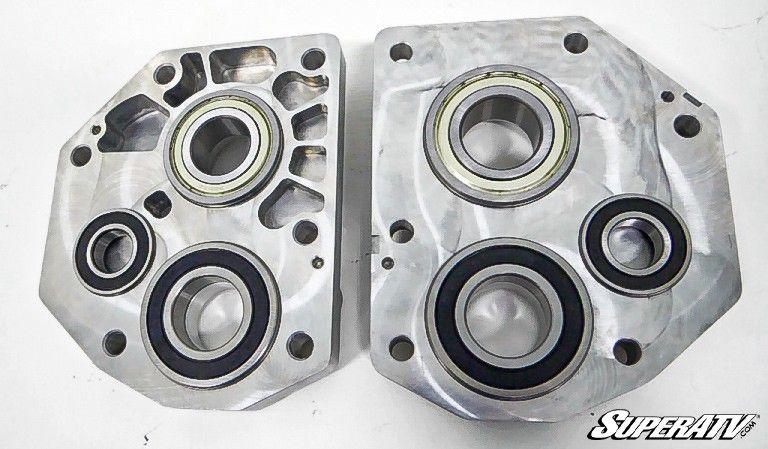

inside of SuperATV GDP 4" portal
The Gen 1 lid is on the left and the Gen 2 lid is on the right. Filling in those spaces with more material adds a negligible amount of weight but a huge amount of strength. The lid bears the brunt of the intense gear forces that are generated under a heavy torque load.
Photo by SuperATV

Caliper Mounting Plates

Our new plates are thicker and made of steel. You won’t be able to break these things without some insanely gnarly riding. Our old aluminum plates were nice and light, but didn’t always stand up to the big builds and rough trails. Our steel plates will stand up to anything—even with the weight reducing cutout.

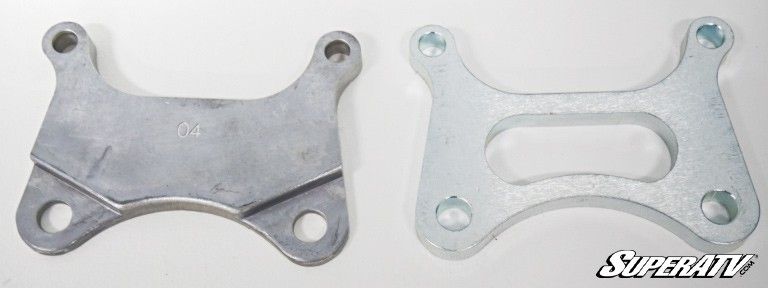

portal component
The Gen 1 caliper mounting plate is on the left and the Gen 2 plate is on the right. The new caliper mounting plates are thicker and made of steel. The weight reducing cutout in the middle doesn’t change the fact that the Gen 2 plates are bulletproof.
Photo by SuperATV

Already Have a Portal Gear Lift? Get a Conversion Kit!

If you already have a SuperATV portal gear lift and you bought it before October 13, 2017, then you might be feeling like you’re out of luck. But we’ve got you covered. We have Gen 2 conversion kits for all models including Polaris, Can-Am, Kawasaki, Honda, Yamaha, and Arctic Cat. These kits include everything mentioned above, plus new seals. They even comes with a socket for those huge castle nuts so you don’t have to hunt one down.

installed SuperATV red boxed A-arm with Rhino 2.0 axle
This machine is fully upgraded and ready to roll. Gen 2 GDP Portal Gear Lifts let you do more and get wild. With more torque and more strength, there’s nothing you can’t do.
Photo by SuperATV

Altogether you’re looking at an impressive suite of changes. We’ve made the best portal gear lift on the market better and more reliable. They’re still the same price and they’re available right now. So go check them out!

RELATED CONTENT: GDP Portal Gear Lifts30 gear reduction11 new products26
Share
0

4 Comments

  1. Avatar for IVAN DIAZ IVAN DIAZ says:
    February 9, 2020 at 10:47 pm

    Hey is there a web site were i can just order my gdp 6 inch
    Portal shaft is because i broke my portal shaft and i dont want to spend moore money instead i can just buy the gear shaft but i cant fine it any help !

    Reply
    • Avatar for Tyler Lichlyter Tyler Lichlyter says:
      February 10, 2020 at 9:50 am

      Hey Ivan, if you call into our customer service team at 855-743-3427, we should be able to get something figured out for you!

      Reply
  2. Avatar for Joshua Whitbeck Joshua Whitbeck says:
    March 25, 2020 at 3:49 pm

    What do the 4” portals do to the top end speed

    Reply
    • Avatar for Tyler Lichlyter Tyler Lichlyter says:
      March 26, 2020 at 9:36 am

      Hey Josh, thanks for reading! While it may shave a few MPH off your top end, you make up for it in your low end. Getting faster acceleration off the line or out of a corner is key, and is just what you get with gear reduction in these GDP portal lifts. You can also compensate for some top end loss with a clutch kit and/or ECU tune. Tire size with each gear reduction option will also play a factor.

      Reply
