How to Check and Replace the Wheel Bearings on a Polaris RZR

By Tyler Mingione | How-To on July 15, 2019
2M READ
Share
1

Length: 4:30
Created: July 15, 2019

Transcript

[0:00] Do you have excess play in your wheel bearings? Today we’re going to show you how to take care of that. I’m Kristen and this is Maintenance Matters.

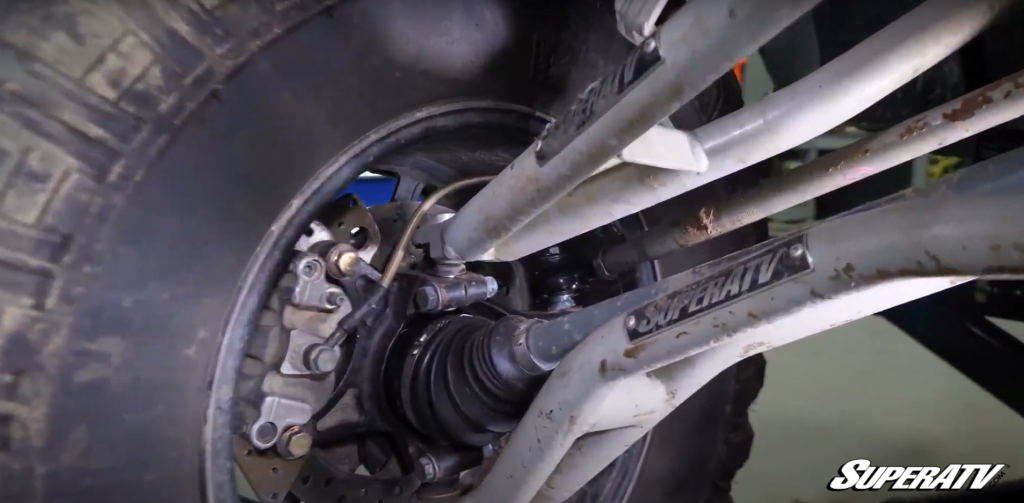

[0:13] When checking your wheel bearings, grab your tire at the top and bottom. Shake. You’re looking for any play in the hub around your axles. Looks like this is worn, so let’s get it swapped out for some new parts.

Start by removing the wheel. Next, remove the caliper.

[0:42] Now we’re going to remove the cotter pin from the tie rod end, and then remove the tie rod end.

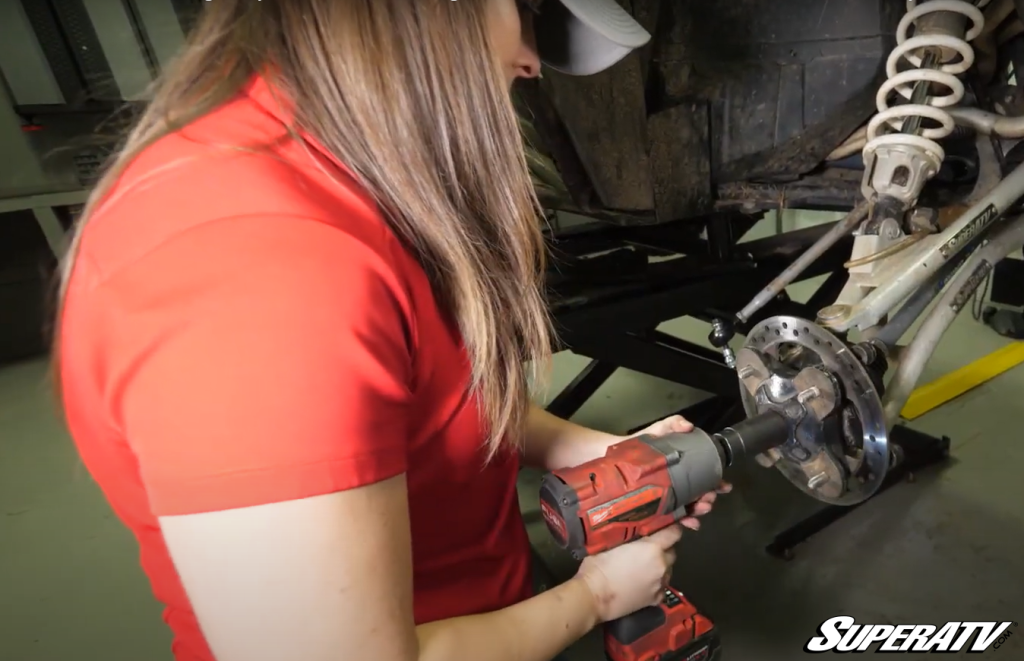

[1:02] Remove the cotter pin on the castle nut, and then remove the castle nut.

Now remove the hub. Now remove the ball joint bolt from the lower A-arm.

Use a pry bar to disconnect the lower A-arm from the spindle.

[1:39] Now remove the ball joint bolt from the upper A-arm.

Using a pair of snap ring pliers, remove the snap ring. A screwdriver may be needed to ease removal.

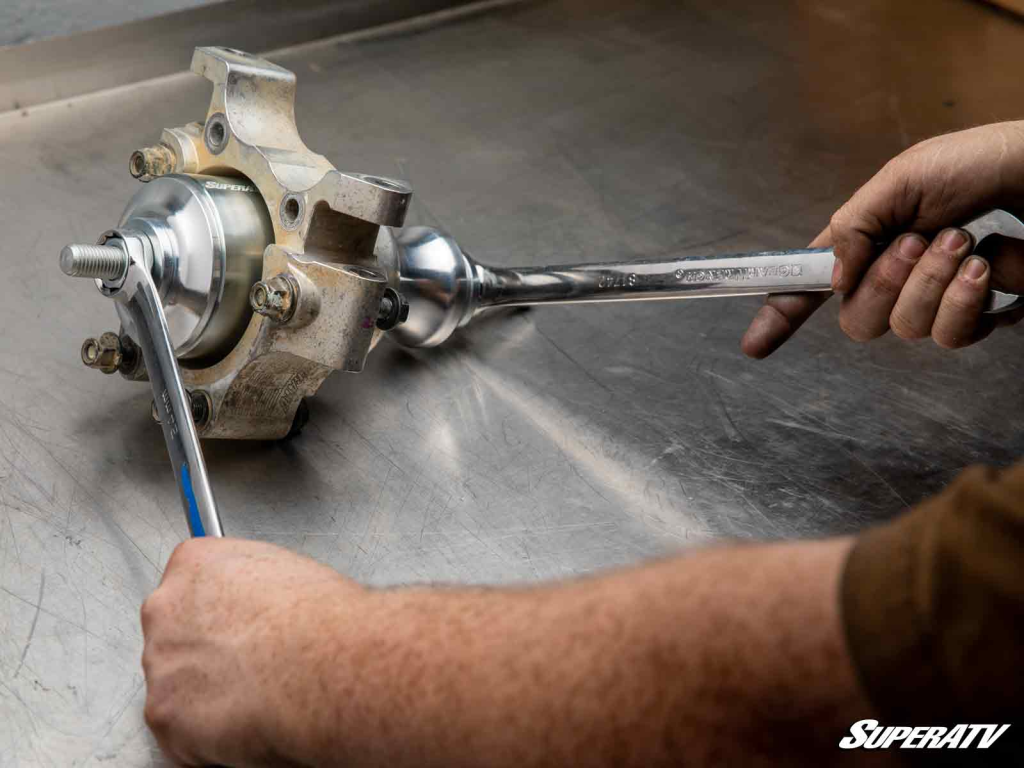

[2:12] Place the spindle on the press, making sure to have the correct adapters to allow the bearing to press out. Make sure to press the bearing from the inside out, with the outside being the side that the snap ring was removed from.

Make sure the bearing is pressing out straight. Otherwise, you could damage your spindle.

[2:46] Remove the spindle from the press.

[3:05] When installing the new bearing, place it in the spindle first to make sure it’s straight.

Be sure to have the correct adapter on the press. If you don’t, this could damage the bearing.

Press the bearing in, from outside inward, until it fully seats again.

[3:54] Reinstall the snap ring, making sure it fully seats by pushing on the snap ring with the screwdriver. Be sure not to damage the bearing.

That’s how easy it is to change out your wheel bearings! Now you can reinstall all components and you’re ready to ride.

RELATED CONTENT: installation262 machine maintenance53 Polaris RZR12
Share
1

2 Comments

  1. Avatar for Lennard wride Lennard wride says:
    April 11, 2021 at 3:04 pm

    I have a 19 rzr 1000xp it pulls to thr right not sure what’s causing it

    Reply
    • Avatar for Tyler Lichlyter Tyler Lichlyter says:
      April 12, 2021 at 11:27 am

      Hey Lennard! To answer your question, it could be a number of things—from suspension adjustment/alignment, tire air pressure, brakes, to worn A-arm bushings. Give us a call at 855-743-3427 and we’ll be glad to help troubleshoot. Thanks for tuning in!

      Reply
