Our Transmission Case Beats OEM at Every Turn

By Kavan Wright | Behind The Wheel on July 8, 2019
3M READ
Share
1

If your engine is the heart of your UTV, the transmission is the brain. It takes all the power generated by your engine, transforms it into usable torque and horsepower, then delivers that power to the axles and differential in exactly the right way. It’s in charge of making your high gear go fast, your low gear go strong, and your reverse go, well, backwards.

It’s pretty stinking important.

That’s why we made a better Transmission Case for the Polaris RZR 1000. We took a look at the weakest parts of the OEM transmission case and beefed them up to make a better transmission case that can stand up to more.

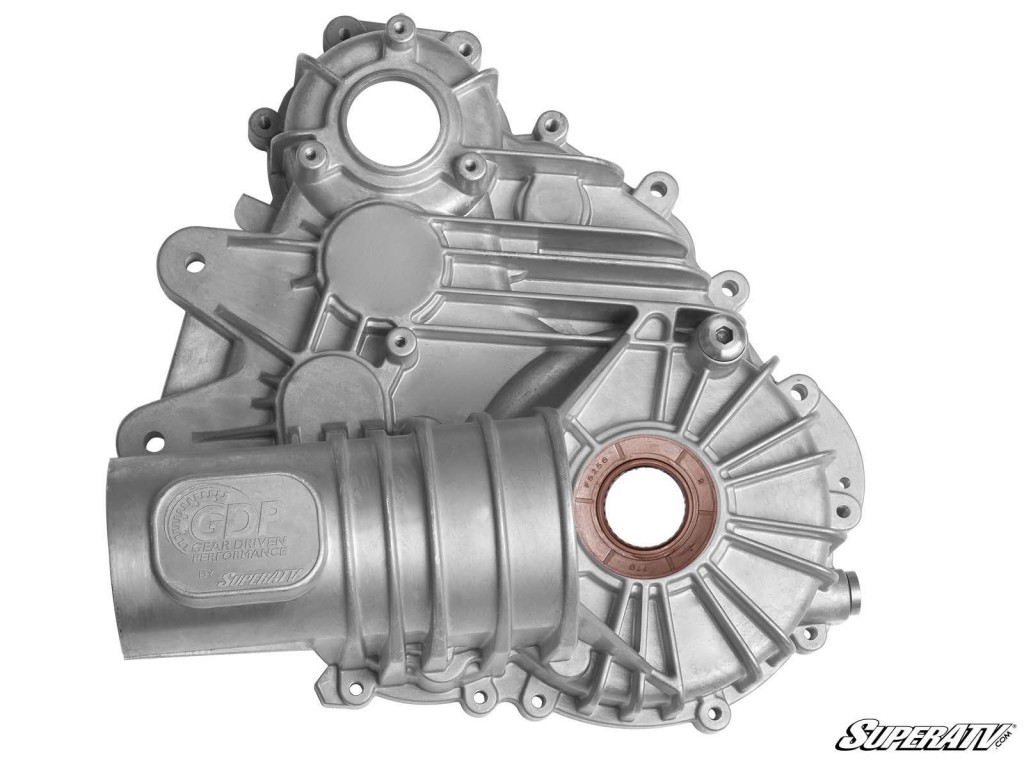

SuperATV transmission housing
SuperATV’s Transmission Case for the Polaris RZR 1000 uses better materials and smarter construction.
Photo by SuperATV

Let’s talk about why SuperATV’s transmission case blows your OEM case out of the water.

Why Did Your Transmission Explode?

First, we need to explain why your transmission blew up in the first place. There’s a predictable cause of transmission case failure, and it has to do with the pinion gear and the snorkel gear that meet in snorkel tube. These two gears are “spiral bevel gears” which, apart from looking a little funky, mean they have some unique properties.

The “spiral” of the teeth on the gears makes them mesh really well and gives them tons of strength—if you’re moving forward. Throw your RZR into reverse and they’re not as strong. A complex set of forces work to push these gears apart from each other in reverse. If the case has any give at all, they’ll pull apart enough to heat up and weaken. Eventually they’ll break, explode, and tear a hole in your transmission.

Better Design

The moral of the story is that you need a snorkel tube that can hold everything together in order to stop your transmission from exploding.

So, how did we beef up the snorkel tube? We put thicker walls around it and added some extra fins and ribs that do more than just add strength.

The thick walls are a no brainer: more material means more strength. The ribs that wrap around the snorkel tube add rigidity, but they also act as a heat sink. Because they stick out from the transmission, they dissipate heat more efficiently than OEM. That means your gears and case stay cooler and are less likely to break.

That’s how we make your whole transmission stronger just by making your case better.

SuperATV transmission case diagram
Making your case better results in more strength throughout the entire transmission. We use extra fins to keep your transmission cool, and 68% more metal to reinforce the snorkel tube and axle output areas.
Photo by SuperATV

68% More Material

We didn’t forget about the axle output either. It’s another high-stress area of your transmission that needed a little TLC. That’s why we’ve added ribs and fins there as well. Altogether, our transmission has 68% more material around the snorkel tube and axle output areas.

It’s stronger, it’s cooler, and it’s exactly the kind of strength your Polaris RZR needs.

Get What You Need

Our RZR 1000 transmission is sold in halves, so you can just get the half you need and bolt it up to your OEM transmission case. If you’ve blown your OEM snorkel, just get the snorkel side. If you really messed up your case, you can replace the whole thing. You don’t have to get more than you need.

Ready to Upgrade?

If you’ve already blown a transmission case, you need to upgrade to something stronger if you don’t want to have the same breakdown again. Upgrade to a better design with SuperATV’s transmission case. We’ve also got internals you might want to consider if you’re already replacing the case. We have a heavy-duty reverse chain, an upgraded front output shaft, and a heavy-duty pinion shaft and snorkel gear kit that will make sure your transmission can stand up to anything.
