How to Reset the Check Engine Light on a Polaris General

By Sara Wines | How-To on February 12, 2025

11M READ

There it is—the dreaded orange Polaris General check engine light. Don’t panic just yet! Not all codes are a disaster. Sometimes it can be something as simple as a loose gas cap!

With this handy guide, you can figure out your Polaris General check engine codes and resolve them for good.

Polaris General Check Engine Light Codes

The interior view of a UTV cab with a view of a brown field through the window. — Just imagine the joy of a clear view without your dash being lit up like a Christmas tree. Image by SuperATV.

How to Locate the Codes on Your Polaris General

Accessing diagnostic codes for each model and year can vary. Be sure to check your machine’s manual for specific instructions.

To locate the check engine codes on a Polaris General, follow these steps:

Using the Display:

Turn the Key to “ON” Position without starting the engine
Access the Diagnostic Screen
- Press the “Mode” or “Toggle” button on the digital display until you reach DIAGCODE, CK ENG, or Engine Error Codes.
  - Some models may require you to press and hold the MODE button to open the diagnostics code menu.
- More than one code may be present at a time. Press the UP button to see if more codes are present.
View the Error Code
1. You’ll see three numbers
  1. First number (far left): This number can range from 0 to 9. This represents the total number of diagnostic codes present.
  2. The second number (top right): This number can be 2 to 6 digits in length. This number is the SPN, or Suspected Area of Fault
  3. The third number (bottom right): This number can be 1 to 2 digits in length. This number is the FMI, or Fault Mode
Record the numbers
1. Write down the numbers you see and compare to your owner’s manual or our definition table at the end of the article

Blink Code Method (Older Models without a Digital Display):

The Polaris General has had a digital display since 2017, when Polaris launched the Ride Command System on the machine. If you have a 2015/16 General or different older Polaris model without a digital display, you’ll use the blink code method below.

Again, different models may use different methods. Check your machine’s manual for specific instructions.

Cycle the Key
- Turn the ignition key ON-OFF-ON-OFF-ON quickly, leaving it in the “ON” position on the third cycle
Check the Engine Light Blinks
- Count the flashes of the check engine light. The flashes will indicate a 2-digit error code (e.g., 2 flashes, a pause, and 3 flashes = Code 23)

Using a Diagnostic Tool (Optional):

For more detailed diagnostics, you can visit your local Polaris dealer or a well-equipped shop in your area. Or you could pick up a Dynojet Power Vision 3 ECU Tuner to read your own codes, monitor machine performance in real time, and more.

Locate the Diagnostic Port
The diagnostic port on General models is located under the hood near the firewall.
Connect a diagnostic tool
Use a diagnostic tool to retrieve, read, and reset Polaris General check engine codes

Common Polaris General Check Engine Light Codes

65590, 65591, 65592

If you get an error code like 65590, 65591, or 65592, you’re probably dealing with a clutch belt problem.

Most Polaris General check engine light codes are related to the drive belt and pop up after belt replacement. If you own any Polaris machine, this probably doesn’t surprise you.

These error codes tend to show up after belt replacements because the interior of the clutch is still dirty, or the belt wasn’t installed or broken in properly. This can lead to a misfire code due to belt slippage or damage. And, of course, these error codes aren’t generally included in your manual!

We’ve got you covered when it comes to installing and break in a drive belt properly. This guide will help you get your belt installed correctly the first time—and resolve your check engine light.

If you’re sure it’s not the belt, this code can also indicate an issue with spark plugs, the coil, plug wires, injectors, compression, timing, or a fuel issue causing a misfire.

520344

The 520344 error is generally related to the emissions system or O2 sensor. You can get an FMI (fault mode) of 15 or 17 with this error.

An FMI of 15 is often caused by a dirty air filter—a relatively simple fix.

An FMI of 17 is generally a result of a clogged fuel filter—another simple fix.

However, both FMIs can be caused by a bad oxygen/O2 sensor. And 15 can be an issue with the MAP sensors or caused by exhaust or intake leaks, which can be much harder to resolve.

FMI 17 can also indicate a bad fuel pump, which can cost you a pretty penny.

Cross your fingers and hope for a dirty filter if you see Polaris error code 520344!

3056 & 520209

Polaris General check engine code 3056 and 520209 are also fairly common. These errors generally indicate some problem with the O2 sensor as well.

The problem could lie with the sensor itself or bad wiring. The sensor may need cleaned, rewired, or replaced.

Other Codes

Your General can throw tons of other codes. Polaris shares just under one hundred SPNs, each with at least one FMI—and many have more.

We include a handy Polaris General diagnostic code table below to help you brainstorm solutions for the problem causing your check engine light.

Refer to your Polaris General service manual for a complete list of error codes and troubleshooting steps. If the issue persists, consult a Polaris dealer or technician for assistance.

Resetting Your Check Engine Light

1. Fix the Problem

Your number one choice should always be to fix the problem that’s throwing the code. Of course, that’s easier said than done.

But if you’re confident you’ve fixed the problem that was causing the light to come on in the first place, it may be time to try something else.

2. Ride Your Machine

If your General’s check engine light doesn’t reset, it doesn’t necessarily mean you did something wrong. Your UTV might just need some time to sort itself out.

The length of time required to reset your light depends on the diagnostic code you get, and it’s hard to tell which ones will take longer.

With some codes, the check engine light will reset after 4000 engine revolutions (assuming the issue is fixed). Others will take much longer and require many key-on and off cycles.

And there are some that won’t reset with this method at all and require specialized tools.

An orange Polaris General parked in a green, springy forest area. — Whether you take your Polaris General around the block or take it out on the trail, getting time in the saddle will eventually reset most check engine lights. Just make sure you’ve fixed whatever issue caused the light in the first place before you commit to a big trip. Photo by SuperATV.

3. Use a Tool

If your General’s check engine light doesn’t reset on its own, you can try using specialized tools.

There are a number of tuners and other scan tools that can manually reset your check engine light.

If you don’t have one, don’t want to get one, or it doesn’t work for you, you may have a code that can only be reset using Polaris’ proprietary “Polaris Digital Wrench Software.” Your local Polaris dealer should have access to this software and be able to reset your light in this case.

If you’ve tried everything else and can’t get your check engine light to go away, you’ll have to take it to a dealer.

4. Disconnect the Battery (Last Resort!)

If you’re at your wits’ end, and you have to get that check engine light off RIGHT NOW, there’s one more thing you can try.

Before we tell you what to do, we’ll tell you why we consider it a last resort. This process resets your ECU, but it can inadvertently reset parts of your ECU’s memory, which can lead to more issues. Some are easy to resolve, but others might require you to replace your ECU if it’s permanently damaged.

In theory, this is a risky method. In practice, it seems to work out.

To reset the ECU, you have to disconnect the battery completely. Then touch your General’s wire harness terminals together. This will drain the capacitors and anything else in your ECU that holds a charge and is a guaranteed method of resetting your Polaris General’s check engine light.

Just remember—if you didn’t fix the problem, your check engine light is going to come back on eventually.

Say Goodbye to Your Check Engine Light

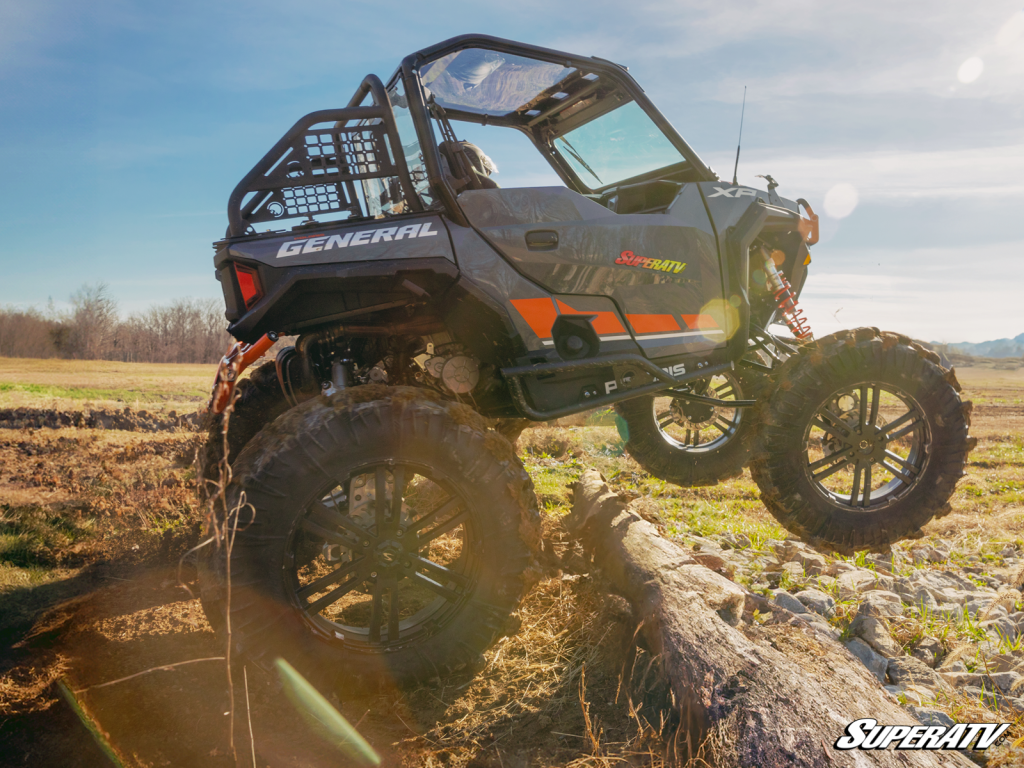

A Polaris General jumping over a log in an open field. — With these helpful tips, you’ll have your General ready for offroad exploration in no time. Image by SuperATV.

With your check engine light resolved, you can ride with confidence knowing your machine is ready for the ride ahead. And when your buddy’s check engine light turns on, you can save the day.

Because the most common causes of check engine codes are caused by belt issues, make sure to upgrade your drive belts, and say goodbye to your Polaris General check engine light.

Polaris General Check Engine Light Codes Definition Table
Component	Condition	SPN	FMI	P-Code
Accelerator position 2	Voltage too high	29	3	P1228
	Voltage too low		4	P1227
	Not plausible		2	P1225
Throttle position sensor 1	Voltage too high	51	3	P0123
	Voltage too low		4	P0122
	Signal out of range		2	P0121
	Data valid but above normal operation range – most severe level		0
	Data valid but below normal operational range – most severe level		1
	Abnormal rate of change		10
	Out of calibration		13
Vehicle speed signal	Data erratic, intermittent, or missing	84	0	P0503
	Data valid but above normal operating range – most severe level		1
	Data valid but below normal operating range – most severe level		2
	Voltage above normal or shorted to high source		3
	Voltage above normal or shorted to low source		4
	Abnormal frequency or pulse width period		8
	Abnormal update rate		9
	Abnormal rate of change		10
	Bad intelligent device or component		12
	Received network data in error		19	C1069
Accelerator position 1	Voltage too high	91	3	P0228
	Voltage too low		4	P0227
	Not plausible		2	P0225
Manifold absolute pressure sensor (T-MAP)	Voltage too high	102	3	P0108
	Voltage too low		4	P0107
	Data erratic, intermittent or incorrect		2
	Mechanical system not responding or out of adjustment		7
	Abnormal rate of change		10
Intake air temperature (T-MAP)	Voltage too high	105	3	P0113
	Voltage too low		4	P0112
	Data erratic, intermittent or incorrect		2
	Abnormal rate of change		10
	Data valid but above normal operating range – lease severe level		15
Engine temperature sensor (ECT)	Voltage too high	110	3	P0118
	Voltage too low		4	P0117
	Temperature too high		16	P0217
	Engine overheat shutdown		0	P1217
	Data erratic, intermittent or incorrect		2
	Abnormal rate of change		10
	Data valid but above normal operating range – least severe level		15
	Data valid but below normal operating range – least severe level		17
System power (Battery potential/power input)	Voltage too high	168	3	P0563
	Voltage too low		4	C1063
	Data valid but above normal operational range – most severe level		0
	Data valid but below normal operational range -most severe level		1
	Data valid but above normal operating range – moderately severe level		16
	Data valid but below normal operating range – moderately severe level		18
Engine speed (This is applicable when the EPS module gets the engine speed from the ECM)	Error in engine speed computation	190	31	P121C
	Received engine speed error		19	C1066
	Data valid but above normal operating range – most severe level		0
	Data valid but below normal operating range – most severe level		1
	Data erratic, intermittent or incorrect		2
	Mechanical system not responding or out of adjustment		7
Engine Speed	Error in engine speed computation	400	31	P121D
	Data valid but above normal operating range – most severe level		0
	Data valid but below normal operating range – most severe level		1
	Data erratic, intermittent or incorrect		2
	Mechanical system not responding or out of adjustment		7
	Received network data in error		19
Gear sensor signal	Voltage too low	523	4	P0916
	Data erratic, intermittent or incorrect		2
	Voltage above normal or shorted to high source		3
	Abnormal update rate		9
ECU memory	EEPROM: Read/write failure, bad intelligent device or component	628	12	C1073
ECU memory	Out of calibration	628	13
Calibration	Checksum/CRC error/Out of calibration	630	13	C1074
Crankshaft position sensor (CPS)	Plausibility fault	636	2	P0335
Crankshaft position sensor (CPS)	Abnormal frequency or pulse width or period	636	8
Camshaft phase sensor	Circuit fault	637	8	P0340
Injector 1 (Front) (MAG) (SDI port injector)	Driver circuit open/grounded	651	5	P0261
	Driver circuit short to B+		3	P0262
	Driver circuit grounded		4	P1262
Injector 2 (PTO)	Driver circuit open/grounded	652	5	P0264
	Driver circuit short to B+		3	P0265
	Driver circuit grounded		4	P1265
Rear differential output	Driver circuit open/grounded	746	5	P1691
	Driver circuit short to B+		3	P1692
	Driver circuit grounded		4	P1693
Fan relay driver circuit	Driver circuit open/grounded	1071	5	P1481
	Driver circuit short to B+		3	P1482
	Driver circuit grounded		4	P1483
Ignition coil primary driver 1 (MAG)	Driver circuit short to B+	1268	3	P1353
	Voltage below normal or shorted to low source		4
	Current below normal or open circuit		5
Ignition coil primary driver 2 (PTO)	Driver circuit short to B+	1269	3	P1354
	Voltage below normal or shorted to low source		4
	Current below normal or open circuit		5
Fuel pump driver circuit	Driver circuit open/grounded	1347	5	P0230
	Driver circuit short to B+		3	P0232
	Driver circuit grounded		4	P0231
ECU output supply voltage 1	Voltage too high	3597	3	P16A2
	Voltage too low		4	P16A1
	Data valid but above normal operational range – most severe level		0
	Data valid but below normal operational range – most severe level		1
	Data valid but above normal operating range – moderately severe level		16
	Data valid but below normal operating range – moderately severe level		18
ECU output supply voltage 2	Voltage too high	3598	3	P16A9
	Voltage too low		4	P16A8
	Data valid but above normal operational range – most severe level		0
	Data valid but below normal operational range – most severe level		1
	Data valid but above normal operating range – moderately severe level		16
	Data valid but below normal operating range – moderately severe level		18
ECU output supply voltage 3	Voltage too high	3599	3	P17AA
	Voltage too low		4	P17AB
	Data valid but above normal operational range – most severe level		0
	Data valid but below normal operational range – most severe level		1
	Data valid but above normal operating range – moderately severe level		16
	Data valid but below normal operating range – moderately severe level		18
ETC accelerator position sensor outputs 1 & 2 correlation	Correlation fault/data erratic, intermittent or incorrect	65613	2	P1135
Throttle position sensor 2	Voltage too high	520198	3	P0223
	Voltage too low		4	P0222
	Signal out of range		2	P0221
	Data valid but above normal range – most severe level		0
	data valid but below normal range – most severe level		1
	Abnormal rate of change		10
	Out of calibration		13
All wheel drive control circuit (AWD)	Driver circuit open/grounded	520207	5	P1836
	Driver circuit short to B+		3	P1835
	Driver circuit grounded		4	P1834
Steering over current shut down	Current above normal or grounded	520221	6	C1050
Steering excessive current error	Current above normal or grounded	520222	6	C1051
Steering torque partial failure	Condition exists	520223	31	C1052
Steering torque full failure	Condition exists	520224	31	C1053
EPS inverter temperature	Greater than 110° C/230° F – Severe	520225	16	C1054
EPS inverter temperature	Greater than 120° C/248° F – Most Severe	520225	0	C1055
EPS CAN communications receive data error	No RX message for 2 seconds	520226	2	U0100
EPS CAN communications receive data error	Condition exists	520226	31
EPS CAN communications transmit error	No TX message for 2 seconds	520227	2	U1100
Position encoder error	Position encoder error – root cause unknown	520228	11	C1065
	Bad intelligent device or component		12
	Condition exists		31
EPS software error	Bad intelligent device or component	520229	12	C1070
EPS software error	Condition exists	520229	31
IC CAN communication with EPS	EPS offline (EPS DM1 not seen)	520230	31	U0131
EPS power save condition	EPS: Key on, engine off, 5 minute power save/timeout	520231	31	C1071
Idle air control valve (IAC) M17; IAC stepper pin 3	Driver circuit open/grounded	520268	5	P1515
	Driver circuit short to B+		3	P1519
	Drive circuit grounded		4	P1518
Throttle body control – requested throttle angle not plausible	Condition exists	520305	31	P1530
ECU analog to digital converter fault – no load	Condition exists	520306	31	P1531
ECU analog to digital converter fault – voltage	Condition exists	520307	31	P1532
Accelerator sensor synchronicity fault sensor difference exceeds limit	Condition exists	520308	31	P1533
ECU fault – ICO	Condition exists	520309	31	P1534
ECU fault – hardware disruption	Condition exists	520311	31	P1537
Oxygen (O2) sensor 1	Data erratic, intermittent, or incorrect	3056	2	P0130
	Voltage above normal or shorted to high source		3	P0132
	Voltage below normal or shorted to low source		4	P0131
	Bad intelligent device or component		12
Oxygen sensor heater 1	Data erratic, intermittent, or incorrect	520209	3	P0032
	Voltage above normal or shorted to high source		4	P0031
	Voltage below normal or shorted to low source		5	P0030
	Current below normal or open circuit		5
Fuel correction front	Data valid but above normal operating range – least severe level	520204	15
Fuel correction front	Data valid but above normal operating range – least severe level	520204	17
Accelerator position/brake position interaction	Condition exists	520275	31
Throttle body control – power stage	Data erratic, intermittent, or incorrect	520277	2
	Voltage above normal or shorted to high source		3
	Voltage below normal or shorted to low source		4
	Abnormal frequence or pulse width or period		8
	Condition exists		31
Throttle body control – return spring check failed	Condition exists	520278	31
Throttle body control – adaption aborted	Condition exists	520279	31
Throttle body control – limp home position check failed	Condition exists	520280	31
Throttle body control – mechanical stop adaptation failure	Condition exists	520281	31
Throttle body control – repeated adaptation failed	Condition exists	520282	31
Throttle body control	Data erratic, intermittent or incorrect	520283	2
	Voltage above normal or shorted to high source		3
	Voltage below normal or shorted to low source		4
Throttle body control – position deviation fault	Condition exists	520284	31
ECU monitoring error	Condition exists	520286	31
ECU monitoring error (level 3)	Condition exists	520287	31
ECU monitoring of injection cut off (level 1)	Condition exists	520288	31
ECU monitoring of injection cut off (level 2)	Condition exists	520289	31
Throttle body control – requested throttle angle not plausible	Condition exists	520305	31
ECU ADC fault – no load	Condition exists	520306	31
ECU ADC fault – voltage	Condition exists	520307	31
Accelerator sensor sync fault – sensor diff exceeds limit	Condition exists	520308	31
ECU fault – ICO	Condition exists	520309	31
ECU fault – hardware disruption	Condition exists	520311	31
Idle fuel correction bank 1	Data valid but above normal operating range – least severe	520342	15
Idle fuel correction bank 1	Data valid but below normal operating range – least severe	520342	17
Adaptive fuel correction bank	Data valid but above normal operating range – least severe	520344	15	P0170
Adaptive fuel correction bank	Data valid but below normal operating range – least severe	520344	17	P1170
EPAS communications receive data error	Data erratic, intermittent or incorrect	520226	2
EPAS communications receive data error	Condition exists	520226	31
EPAS inverter temperature	Data valid but above normal operational range – most severe	520225	0
EPAS inverter temperature	Data valid but below normal operation range – most severe	520225	16
EPAS software error	Bad intelligent device or component	520229	12
EPAS software error	Condition exists	520229	31
EPAS SEPIC voltage error	Voltage above normal or shorted to high source	524086	3
EPAS SEPIC voltage error	Voltage below normal or shorted to low source	524086	4
EPAS power save condition	Condition exists	520231	31
Vehicle speed	Vehicle speed too high	84	0
	Vehicle speed implausible		10
	Received vehicle speed has errors		19
Vehicle speed sensor	Data drifted high	84	20
Vehicle speed sensor	Data drifted low	84	21
ICS communication	Loss of CAN between EPS and instrument cluster	520230	31
VGD low	VGD low	524086	4
Absolute position sensor	Out of range	1807	31
Absolute position sensor	Not calibrated	1807	13
Transmission requested range data	Data erratic, intermittent, or incorrect	162	2
	Data valid but above normal range – least severe		15
	Data valid but below operating range – least severe		17
CAN message PGN 65382, 65396, 65314, 65265, 61445	Abnormal update rate	516116,516117, 516118, 516120, 516121	9
SW version & HW version mismatch	Data erratic, intermittent or incorrect	516119	2
Vehicle speed data	Data erratic, intermittent or incorrect	516123	2
Vehicle speed data	Data drifted high	516123	20
CAN 1	Root cause not known	516125	11
System voltage	Data valid but above normal range – most severe level	516126	0
	Data valid but below normal range – most severe level		1
	Voltage above normal or shorted to high soruce		3
	Voltage below normal or shorted to low source		4
	Data valid but above normal operating range – moderately severe		16
	Data valid but below normal operating range – moderately severe		18
Raw brake switch status	Data erratic, intermittent or incorrect	520572	2
Normalized accelerator pedal position	Data erratic, intermittent or incorrect	520574	2
Engine speed data	Data erratic, intermittent or incorrect	524000	2
Steering angle input	Data erratic, intermittent or incorrect	524114	2
Cylinder not identified	Misfire Detected	65590	7	P0314
Cylinder 1 (PTO)	Misfire Detected	65591	7	P0301
Cylinder 2 (MAG)	Misfire Detected	65592	7	P0302

Note: This table was last updated 12/10/24 and is meant for informational purposes only. Always confer with your machine’s owner’s manual before proceeding with repairs. Polaris shares digital versions of owner’s manuals for most machines. For assistance, contact an authorized Polaris dealer.
