Polaris RZR S 1000 6" Portal Gear Lift

SKU
PGH6-1-44-PORTAL-S1000-G3
$3,399.95


Details

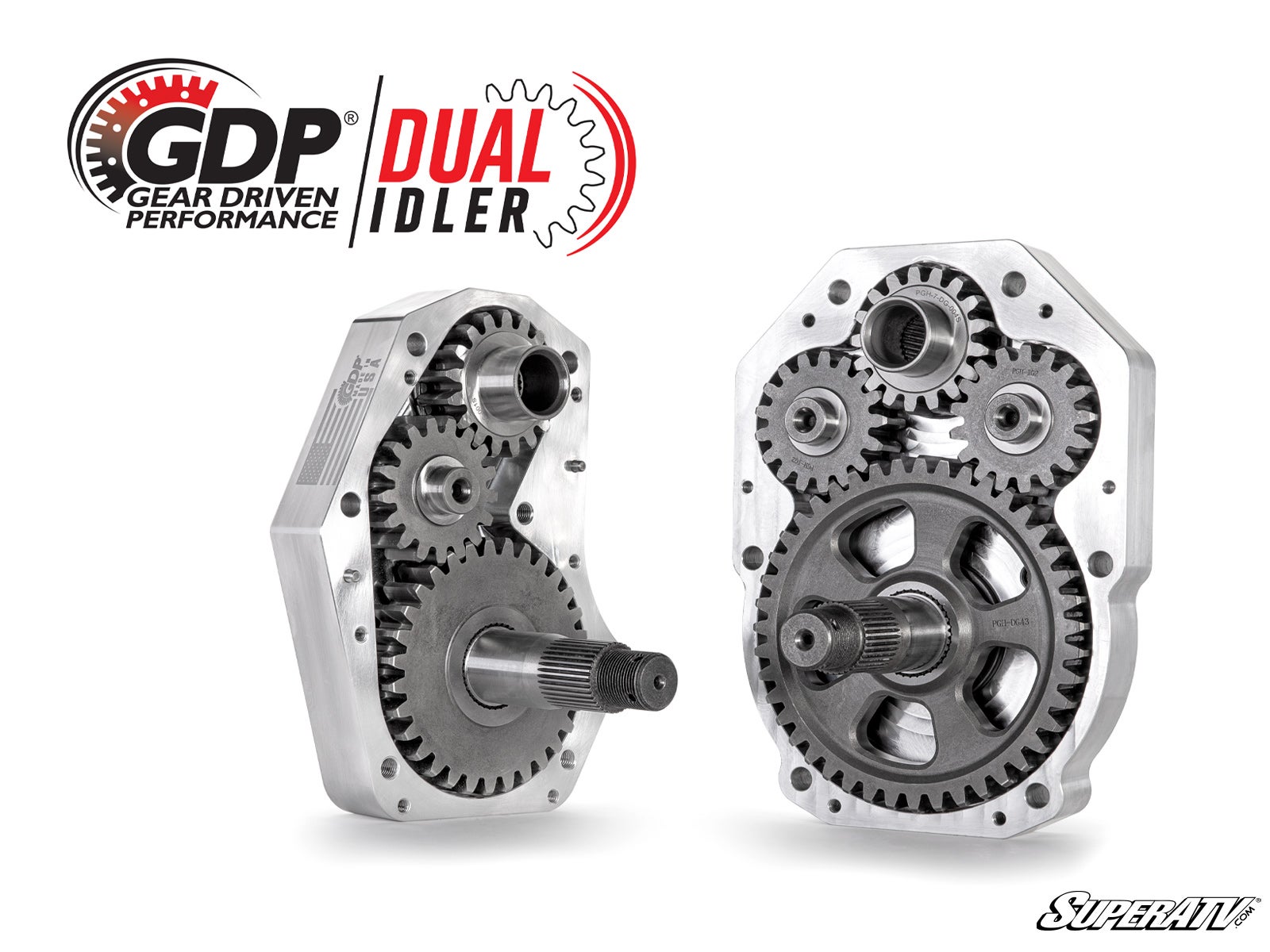

Gen 3 Portals are Geared for All 

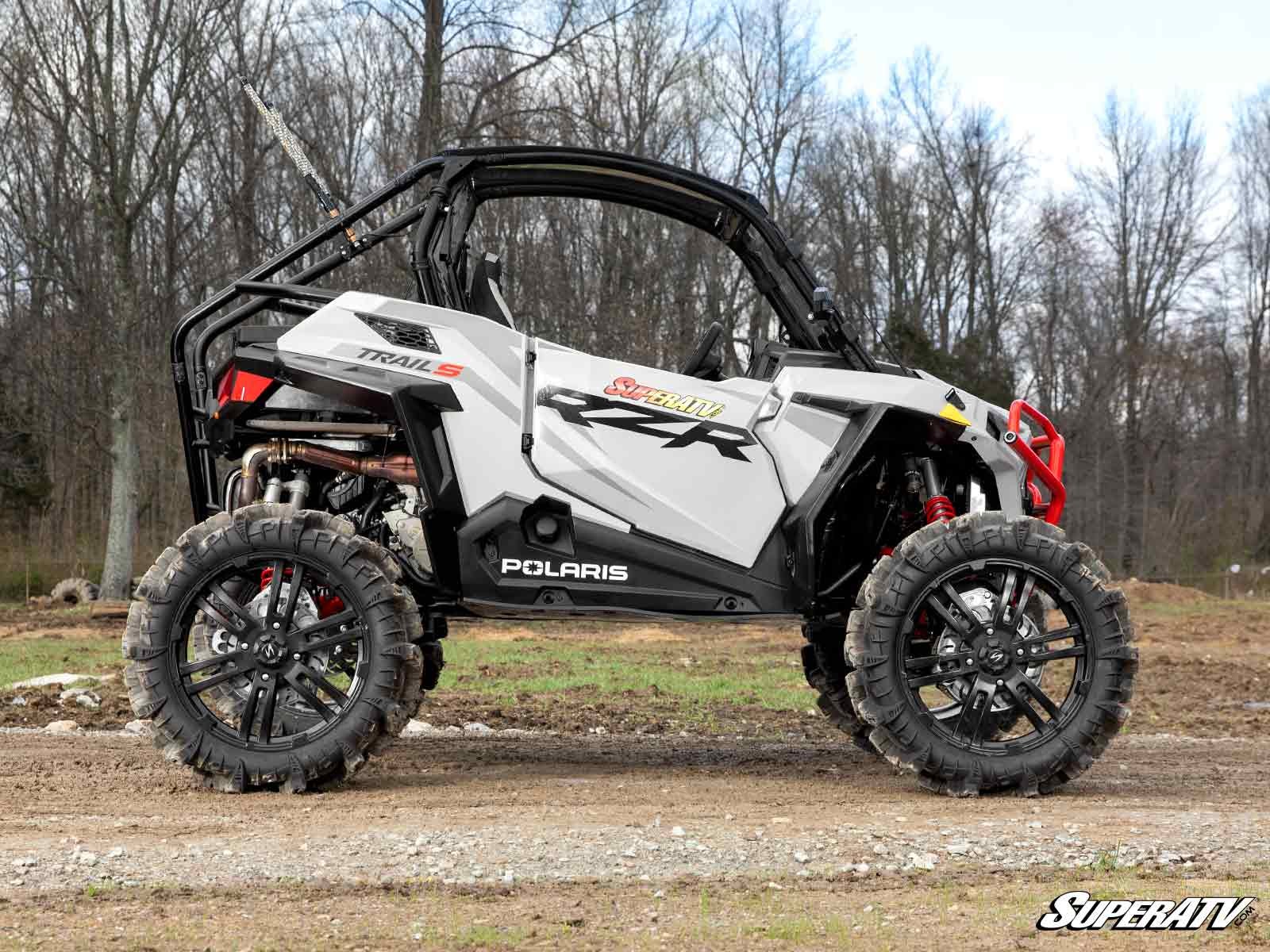

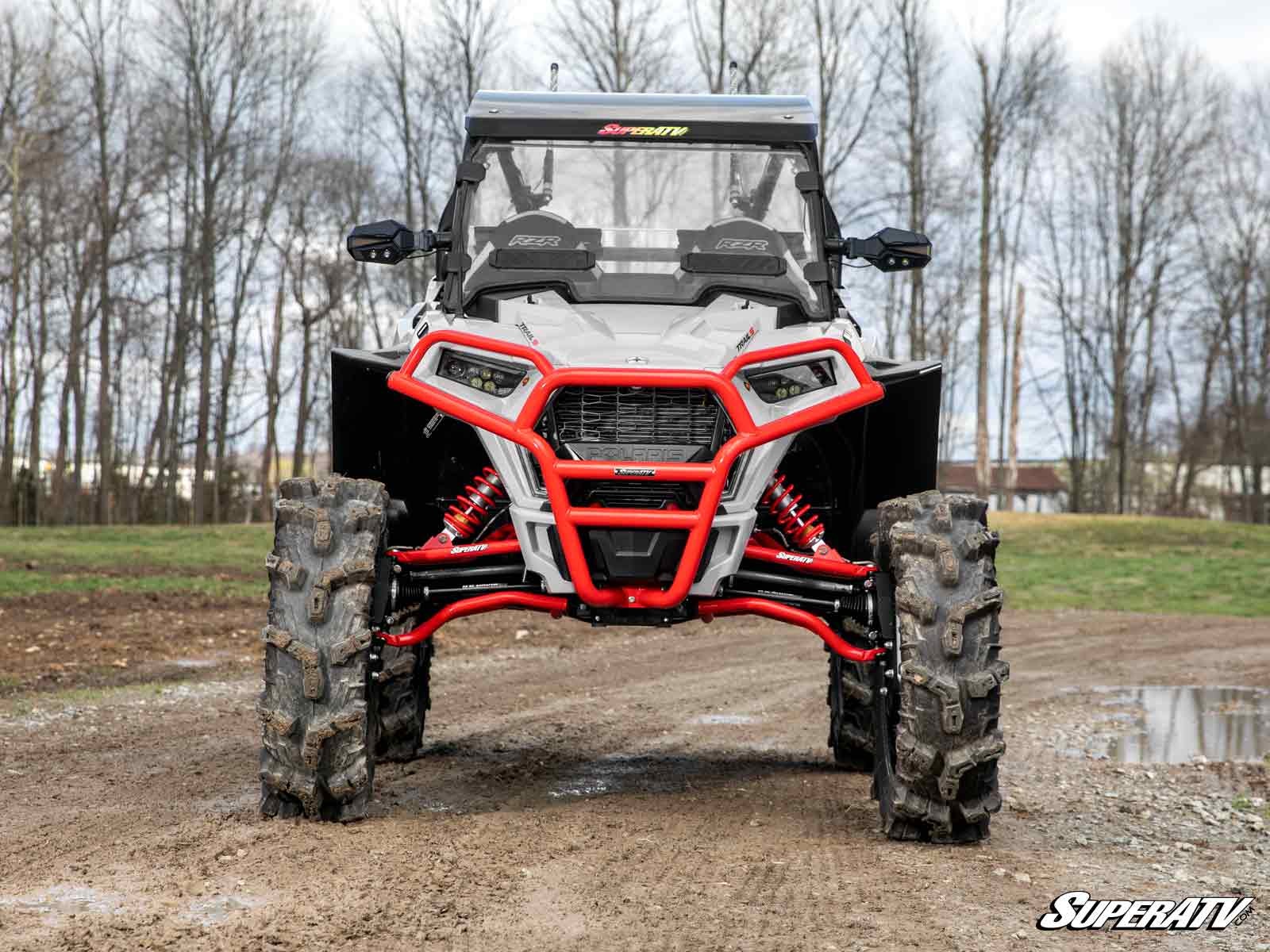

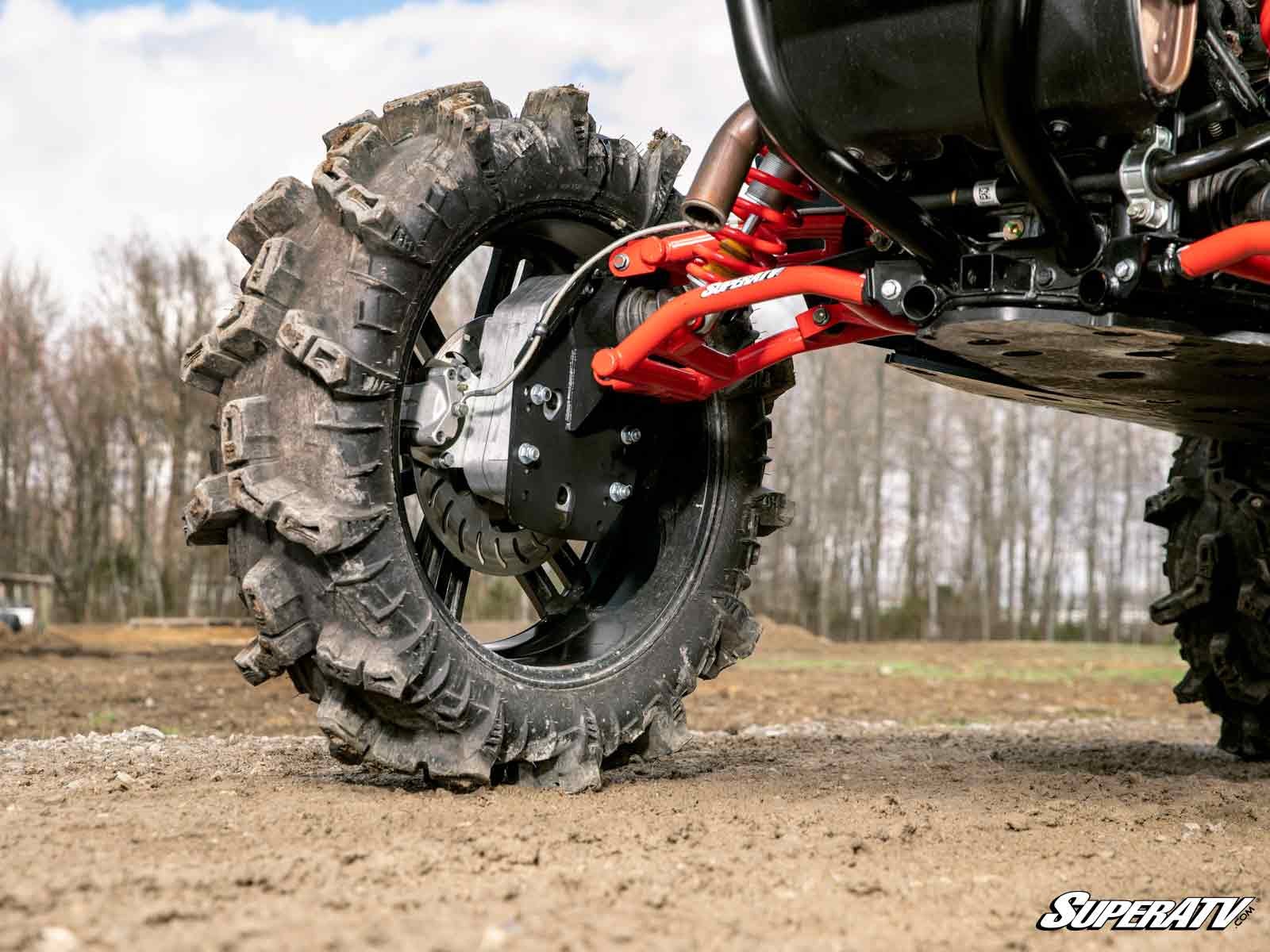

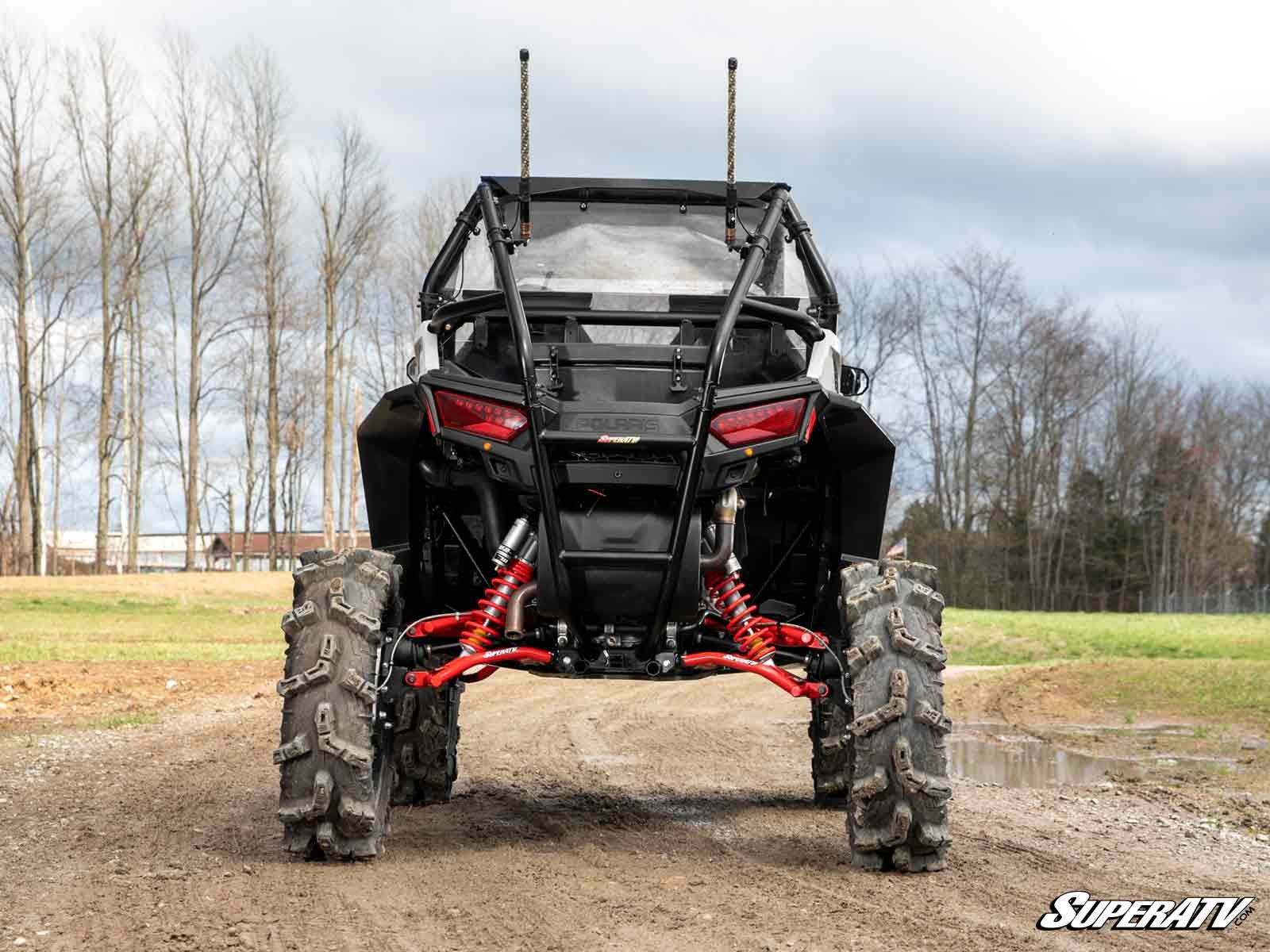

SuperATV’s GDP 6” Portal Gear Lift for the Polaris RZR S 1000 gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub which means they maintain suspension geometry and reduce drivetrain stress. Customize by choosing between a 30% or 45% gear reduction and selecting a cast or billet aluminum housing. GDP portals are truly Geared for All.

45% – Perfect for Mud
Install big 6” portals with a 45% gear reduction to get clearance for huge tires and a massive boost in torque. It’ll turn your monster tires like they’re stock and take your RZR through the biggest, thickest mud holes you can find. These portals are built for power — and the mud they send flying proves it. 

45% – Perfect for Rocks 
A 6” portal box with a 45% gear reduction gives you tons of torque to crawl over any rock or boulder you can find. With that much power, rock shelves will feel like speed bumps and boulders feel like pebbles. With 6” of clearance, you can run bigger tires and clear nastier rock gardens without getting high-centered.

30% – Perfect for Everything 
A 30% gear reduction lets you turn bigger tires and gives you the versatility to run mud, dominate trails and hills, and maintain high speed on the road. It gets your power to the ground to make your UTV more capable no matter how you ride.

Learn more about how tire size and gear reduction can unleash your machine’s potential.

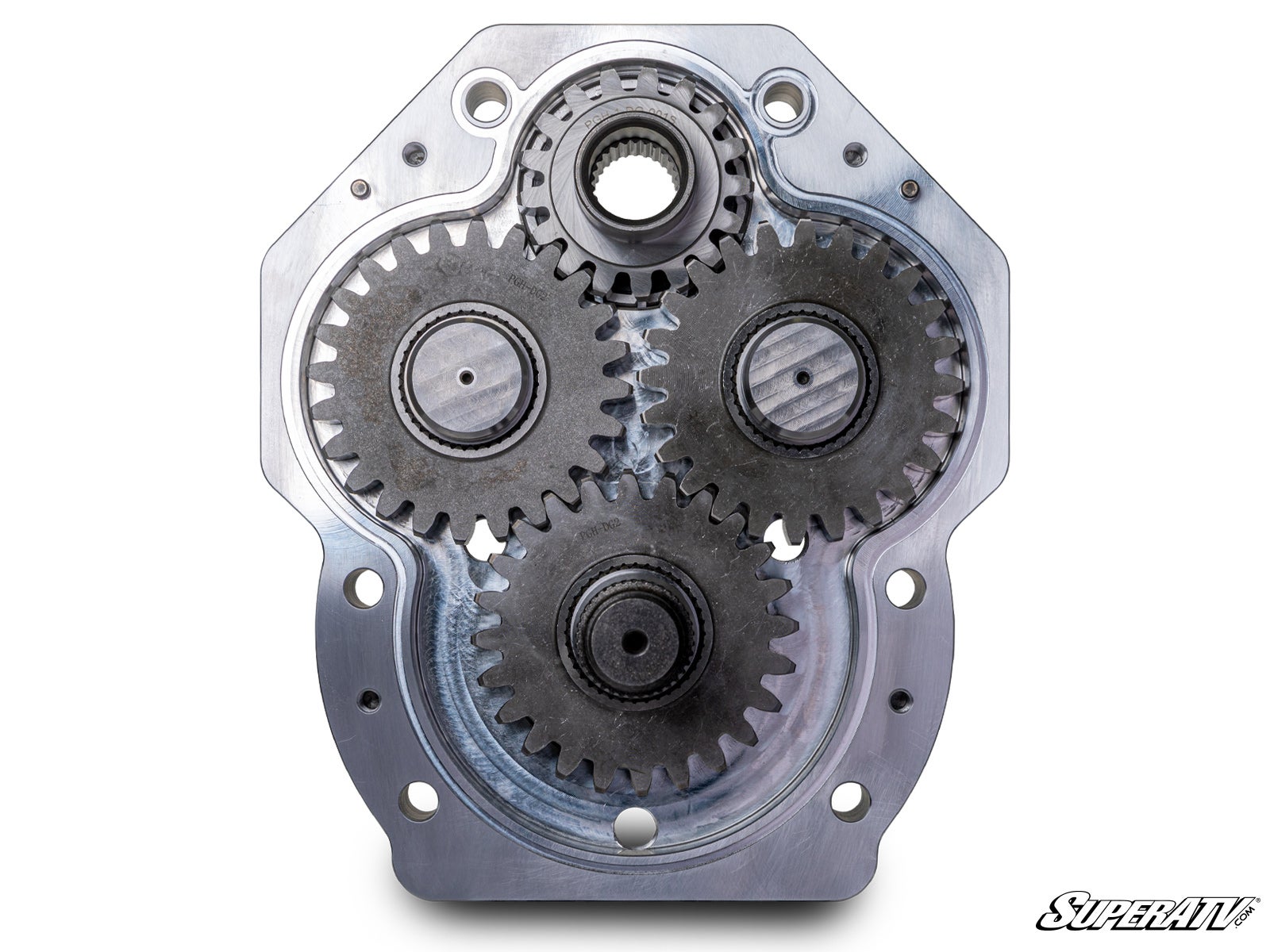

Better Gears
Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.

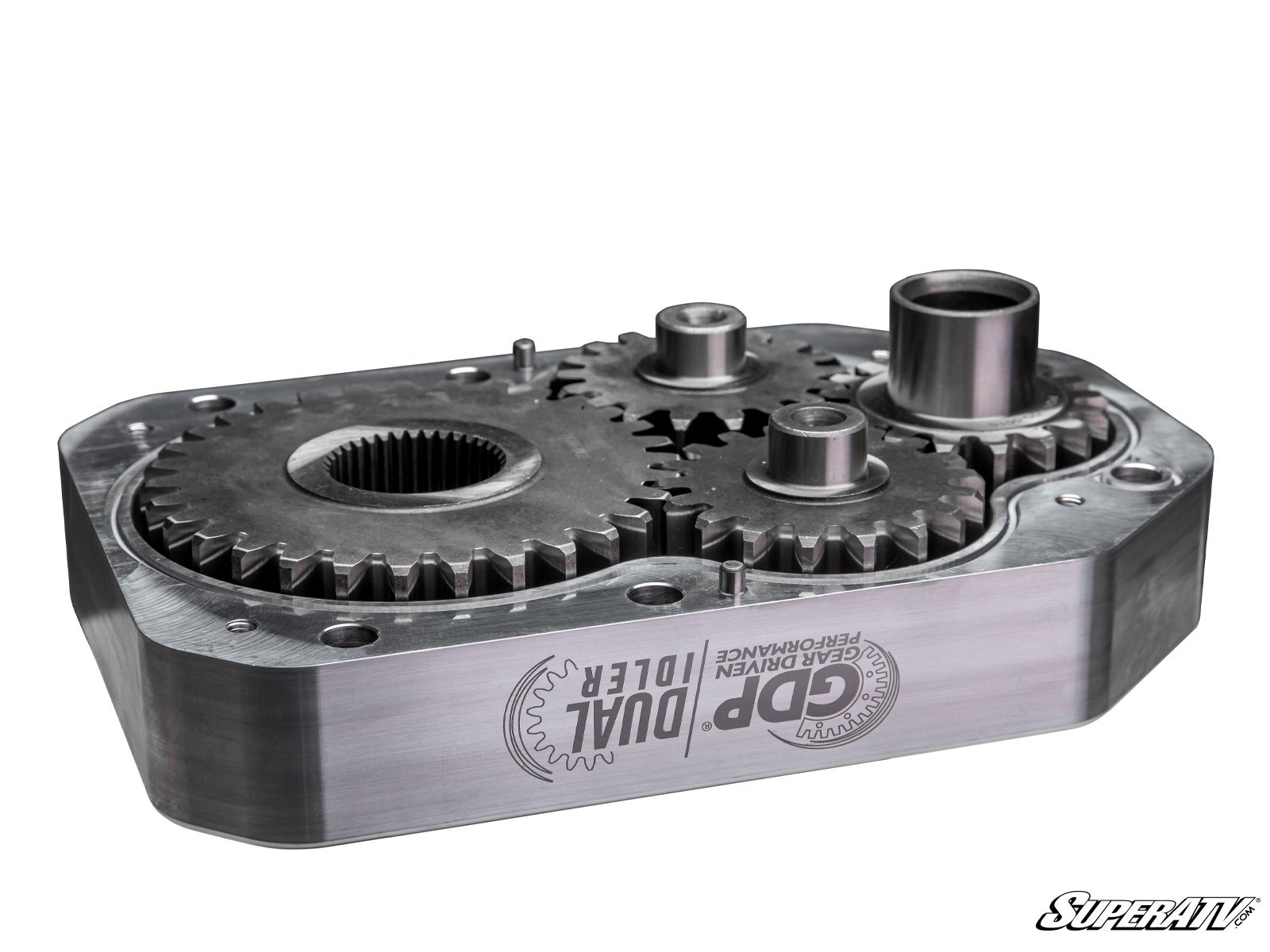

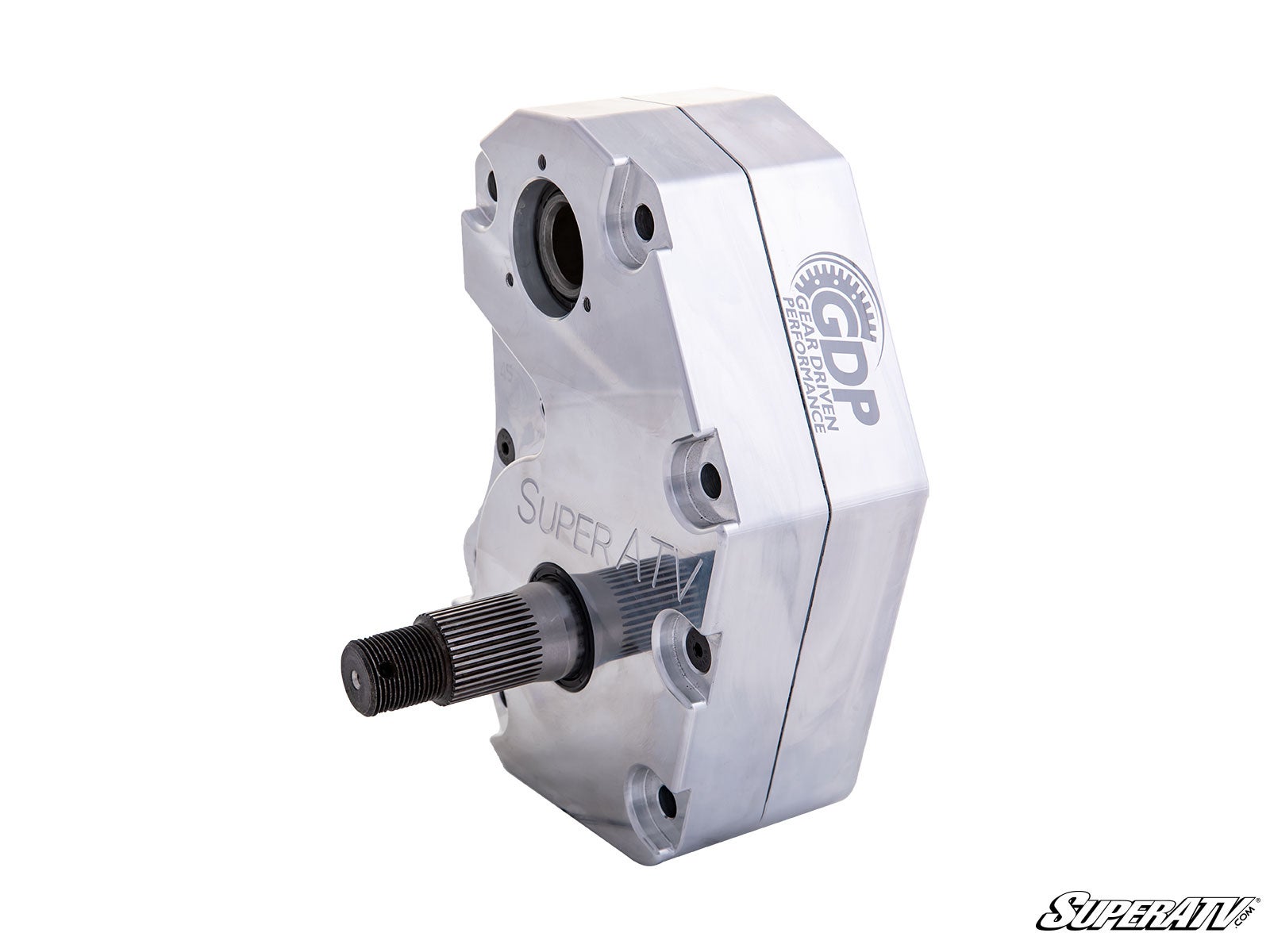

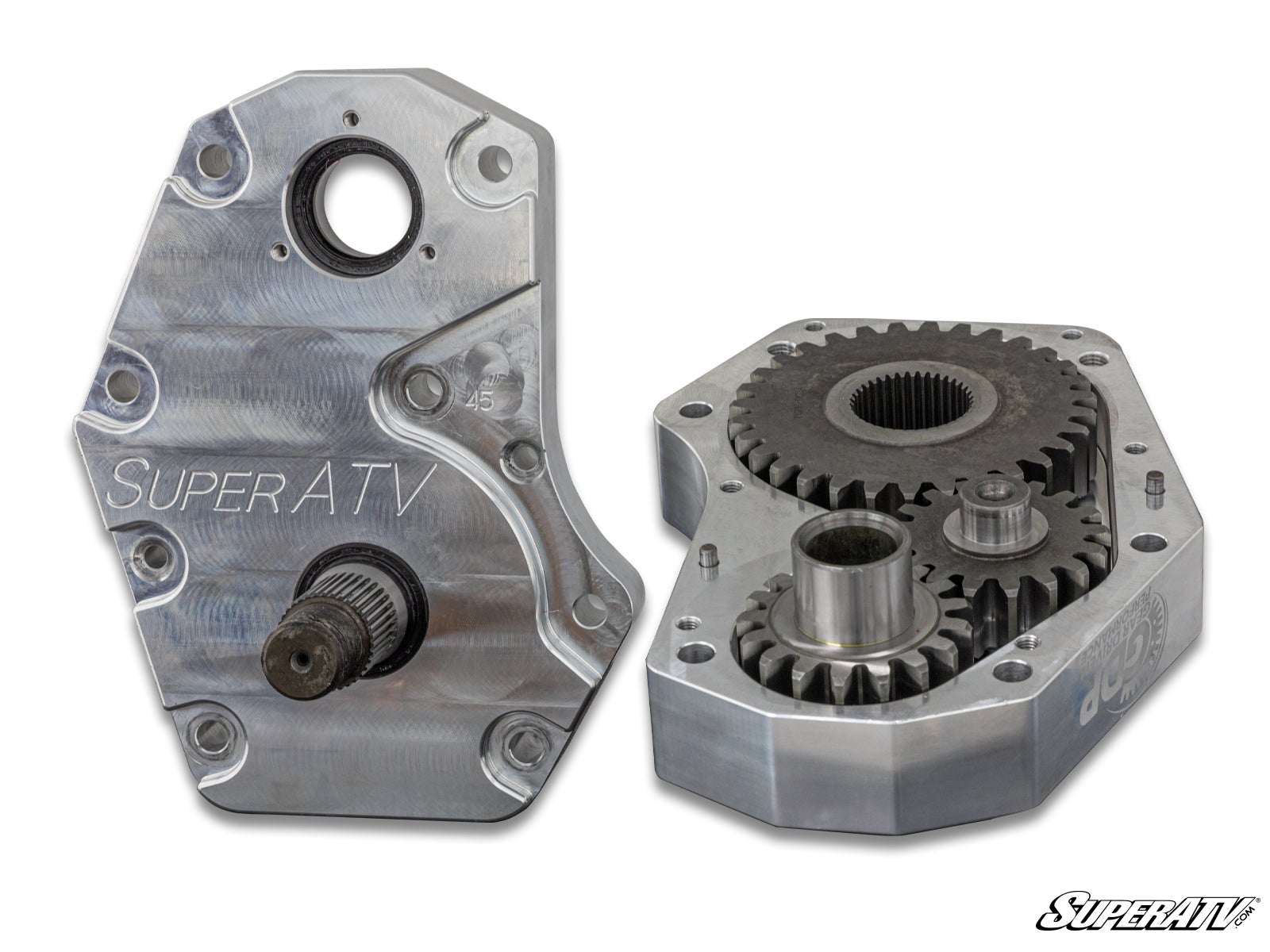

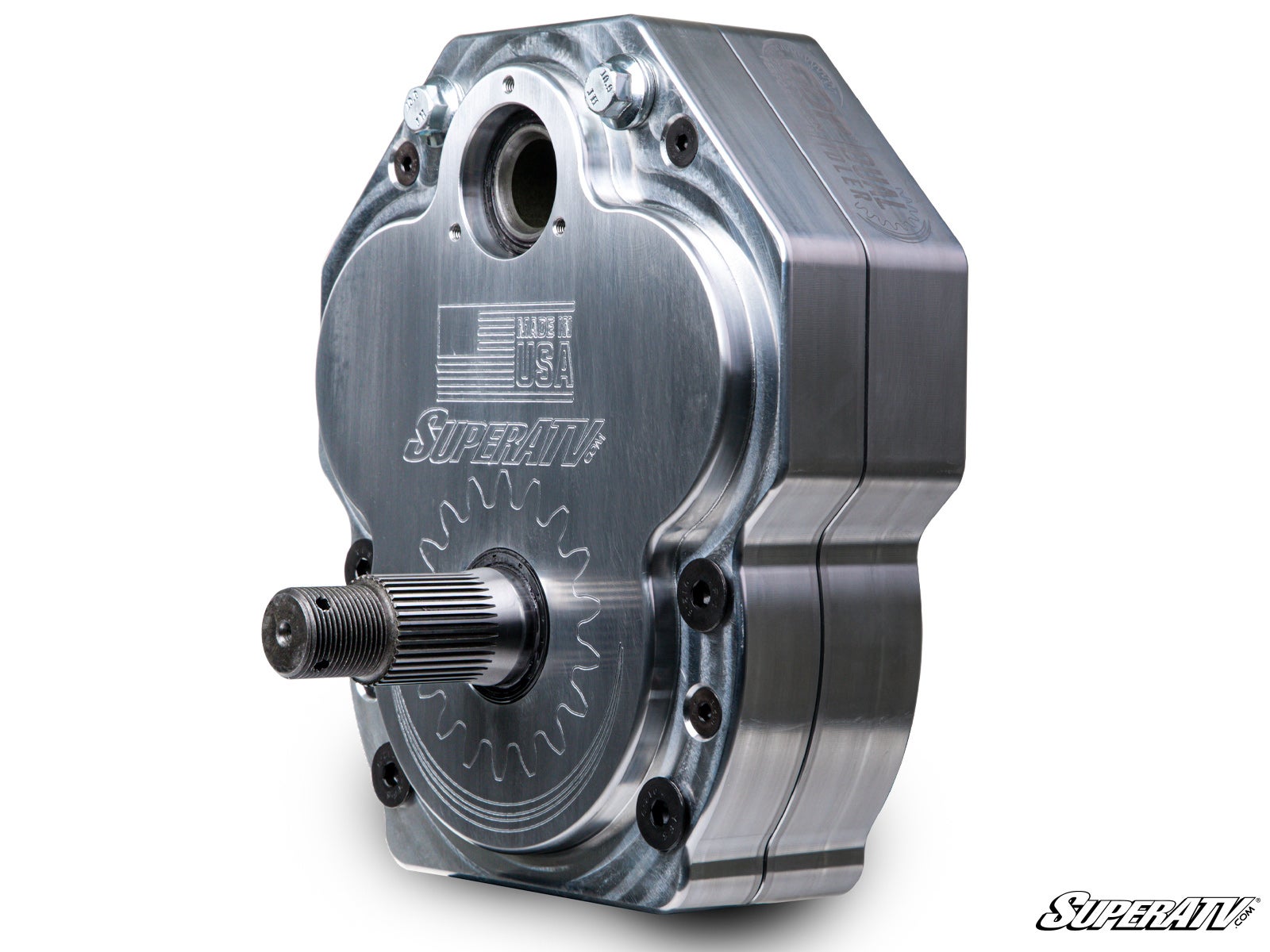

Billet Housings
Choose billet or cast aluminum housings to finish your portals. Our billet housings are CNC machined right here in Madison, Indiana and give you increased strength and consistency over cast. Not to mention they look damn good.

Reinforce Your Frame with a Frame Stiffener
We highly recommend running a SuperATV Frame Stiffener with your 6" Portal Gear Lift. A frame stiffener reinforces your frame enough to let you ride your 6" portals with monster tires and no worries.

Polaris RZR S 1000 Portal Gear Reduction Recommendations
Tire Size Required Suspension Setup with 6" Portals Recommended 6" Portal Gear Reduction
Up to 30" Stock 30%
Up to 30" 3" Lift Kit 30%
31" to 32" 1.5" Forward Front A Arms 30%
31" to 32" 1.5" Forward Front A-Arms and 3-5" Lift Kit 30%
33" to 44" 7-10" Lift Kit 45%
Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information. 

Fitment

  • Polaris RZR S 1000 : 2016+
  • Polaris RZR S4 1000 : 2019+

Features

  • Available with billet or cast aluminum housing
  • 9310 alloy billet steel precision ground gears are cool and quiet
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No Leak Bearings and Seals
  • Universal Hub Fits All Major bolt patterns
  • Comes complete with all hardware, backing plates, brakes lines and instructions

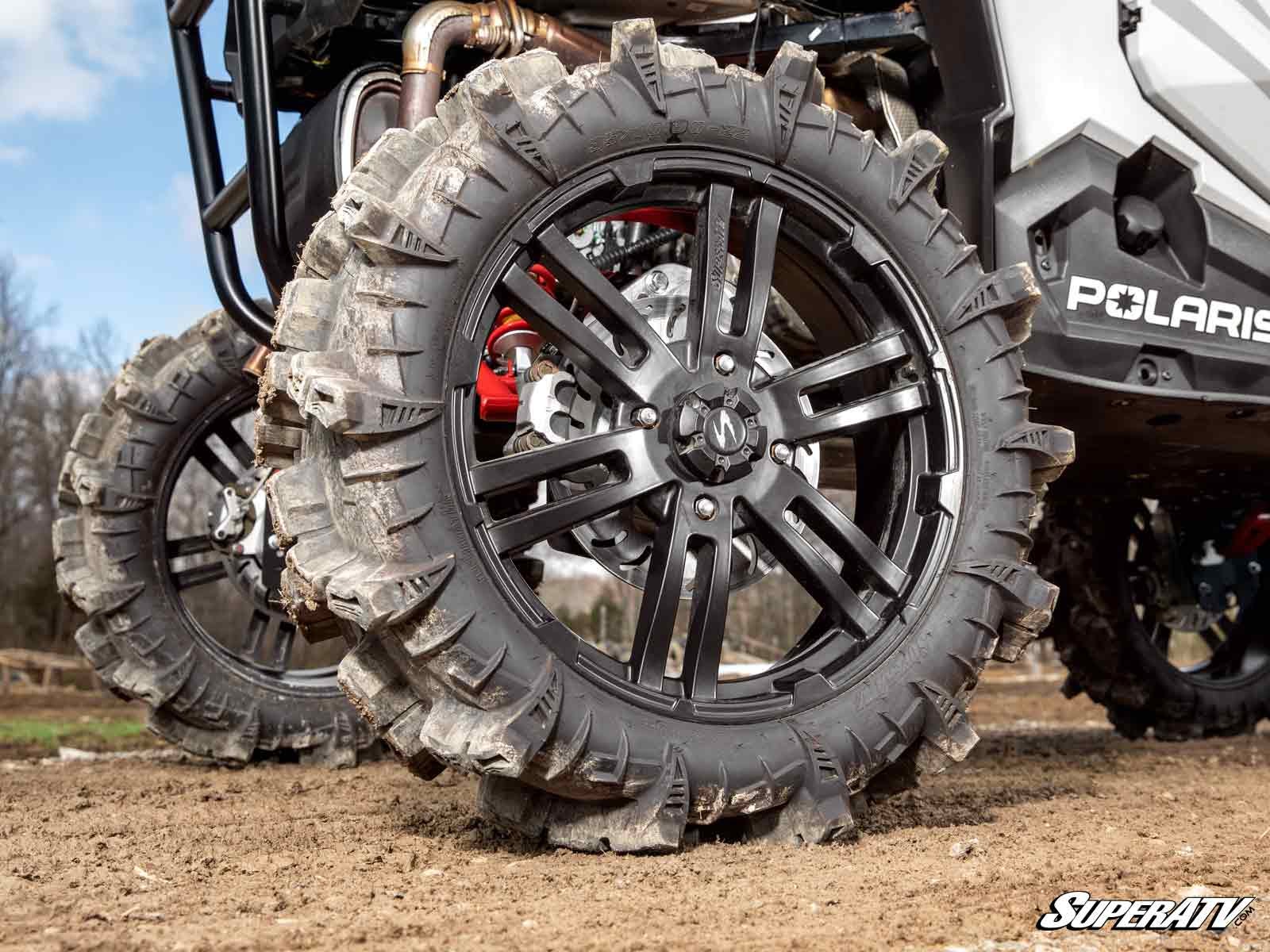

Wheel Requirements:
  • 18” or larger wheel required
  • 18” wheels cannot exceed 4-1/2” backspacing 
  • 20” and larger wheels cannot exceed 5” backspacing
Other Portal Options:
Polaris RZR S 1000 | 4" Portal Gear Lift (15% or 30% Gear Reductions)
Polaris RZR S 1000 | 8" Portal Gear Lift (45% Gear Reductions)
Warranty
Limited Lifetime Warranty

When filling gear box use only 80W-90 gear oil. Using grease will cause failure of gears and bearings. Using grease will void your warranty.

SuperATV extends the following limited lifetime warranty. This limited warranty extends only to the original purchaser. SuperATV warrants this product and its parts (excluding bearings, seals, & gaskets). Warranty is limited to material and / or workmanship defect at the time of shipment from the factory, and in no event shall seller have any liability for consequential damages of any kind resulting from a breach of this warranty. This warranty will be void on all products that show evidence of misapplication, improper installation, abuse, lack of proper maintenance, negligence, or alteration from original design. This warranty is in lieu of any other warranties, either expressed or implied, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTIBILTY OR FITNESS FOR ANY PARTICULAR PURPOSE.

Procedures for obtaining warranty service:

Should you have any problems with your Gear Driven Performance product, please call SuperATV Customer Service at 855-743-3427. Please have a copy of your original purchase receipt available, with dealer name (if applicable), date of purchase, and invoice number when calling for technical help. Most often, installation, or break in procedural issues (See break in procedure information, located in the instructions) can be handled quickly by speaking with one of our customer service representatives.

If it is determined that repairs are required to your Gear Driven Performance portal, you MUST acquire an RGA number from our customer service team. RGA's and repair services are ONLY rendered by SuperATV. Any shipping costs incurred after 30 days (starting from the original purchase date) on any Portal returned for repair is the customer's responsibility. ALL Portals must be returned in the original box, with the original packaging, or a similarly well protected box. ALL portals must have the RGA number clearly written on the outside of the package. NO COD packages will be accepted, and no package will be accepted without an RGA number written on the outside of the box. Shipping information, including address and method, will be given to you by our customer service team and/or listed on our website when you create your RGA.

Upon arrival of your warranty parts we will have them inspected by our technicians to determine if the damage was a manufacturing defect or rider/installation error. The inspection usually takes place 1-2 days after the package arrives. SuperATV will then call you with the results of the inspection. Depending on the outcome of the inspection, you may be required to pay a replacement fee for the broken parts (prices may vary depending on parts that need to be replaced). We do our best to get your issues corrected as soon as possible so you can get back out on the trails. We also match shipping labels for our customers. If you ship the warranty parts to us with an overnight label, we will return the favor and send you the replacements parts on an overnight shipment at no charge.

Replacement bearings, seals and gaskets can be found at www.SuperATV.com.

Thank you for your business!
